EPS Foam CNC Router is one kind of foam CNC machines, it is mainly working as a CNC foam cutter for styrofoam carving, it has a big working dimension, does a good job in carving or cutting of large scale workpieces in different materials, such as wood, aluminum, styrofoam, but not for steel, iron, etc. It is widely used to process and carve wood and styrofoam automotive, ship or other molds, and GRG or GRC decorations, and architecture models.

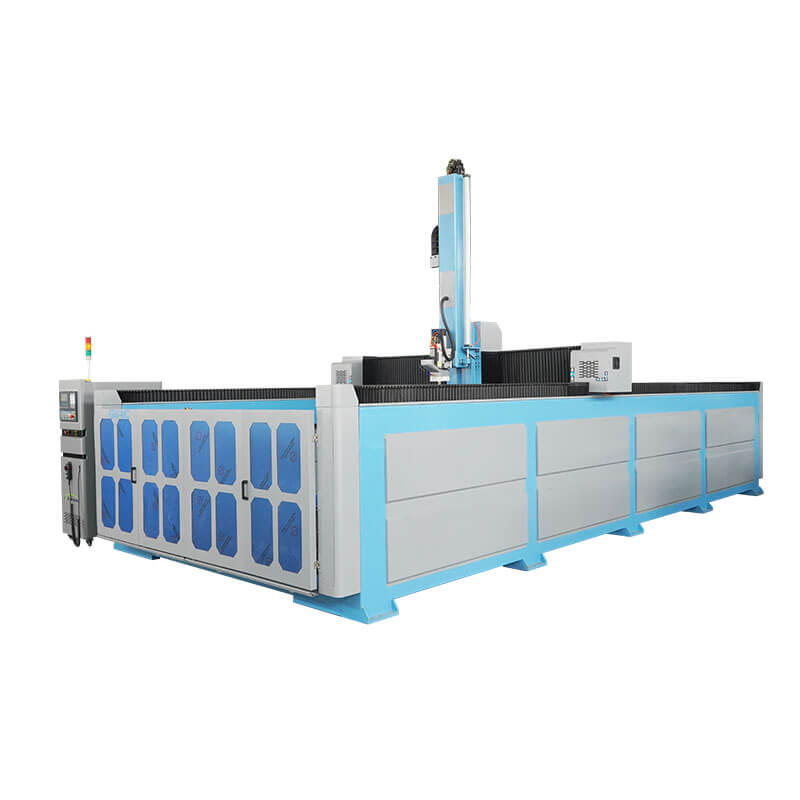

4 Axis EPS/Foam CNC Router Carving Machine
$20,000.00
$20,000.00 – $25,000.00
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

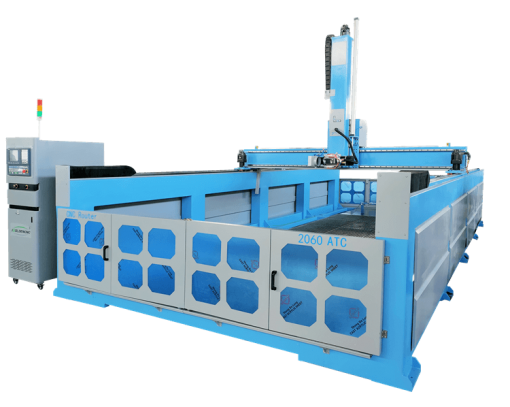

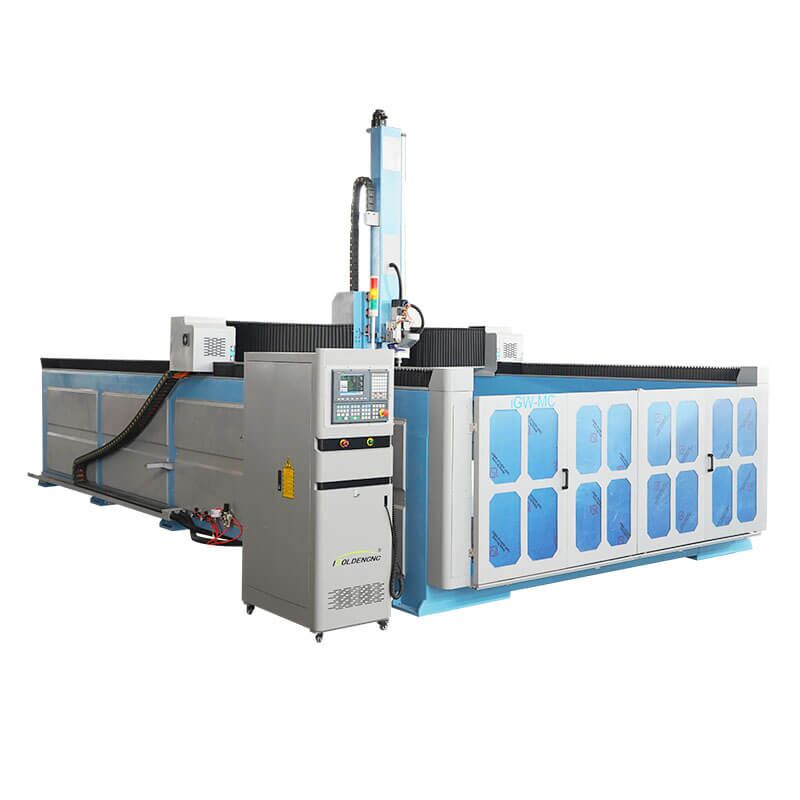

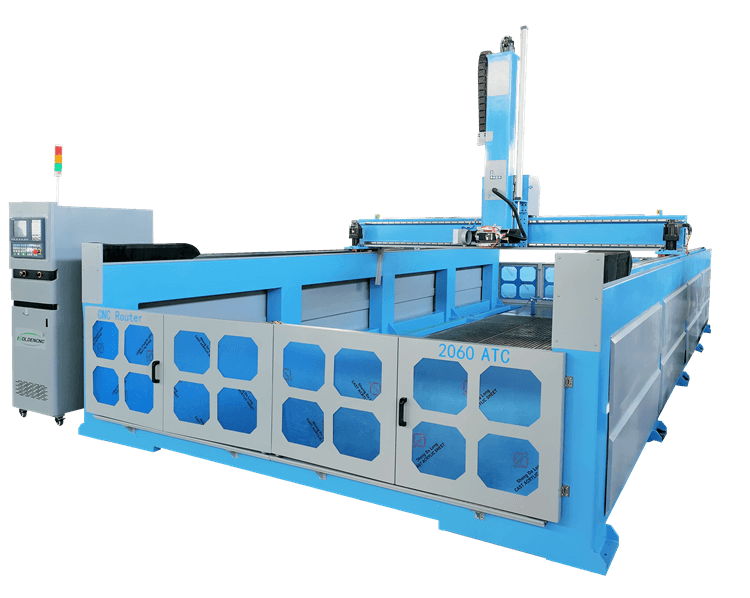

3d CNC Foam Cutting Machine
EPS Foam CNC Router is one kind of foam CNC machines, it is mainly working as a CNC foam cutter for styrofoam carving, it has a big working dimension, does a good job in carving or cutting of large scale workpieces in different materials, such as wood, aluminum, styrofoam, but not for steel, iron, etc. It is widely used to process and carve wood and styrofoam automotive, ship or other molds, and GRG or GRC decorations, and architecture models.
3d Cnc Foam Cutting Machine Video
CNC Machining Center Parameter
Technical Data
| Model | iGW-MC-2060 |
| Working area | 2000*6000*1100mm |
| Spindle | China HQD 9kw atc air cooling spindle + swing 180 degree |
| Inverter | Fuling |
| Motor | Japan Yaskawa 850W servo motor |
| Driver | Japan Yaskawa 1kw servo driver |
| Control System | Syntec 6MB control system + hand wheel |
| Table | Vacuum & T-slot table with 7.5kw air vacuum pump |
| Transmission | XY helical rack, Z Taiwan TBI ball screw |
| Guide rail | Taiwan linear guide |
| Ball screw | Z TBI ball screw |
| Body | Thick steel tube Welded body |
| Beam | Steel beam |
| Columns | Steel columns |
| Control box | Independent control box |
| Colour | Custom made |
| Lubrication | Automatic oiling |
| Tool Setting | Automatic Tool Calibration Sensor |
| Dust collector | Double bag dust collector |
| Voltage | 3 Phase/380V/50HZ |
| Rotary axis | Optional part |
Structure
This is an upgraded foam CNC router which is equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability. Besides that With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient. Therefore it may be your better choice to process some foam products.
Linear Automatic Tool Changer
With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.
Air Cooling Spindle
Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.
Worktable Optioned
There are many choices of table size: 1300*2500mm, 1500*300mm, 2000*4000mm, (we can customize the size according to your needs)
The cast iron worktable with the fixture is the standard worktable.
The vac-sorb worktable with T-slot can be optioned.
Control System Optioned
Taiwan LNC system is the standard system.
Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

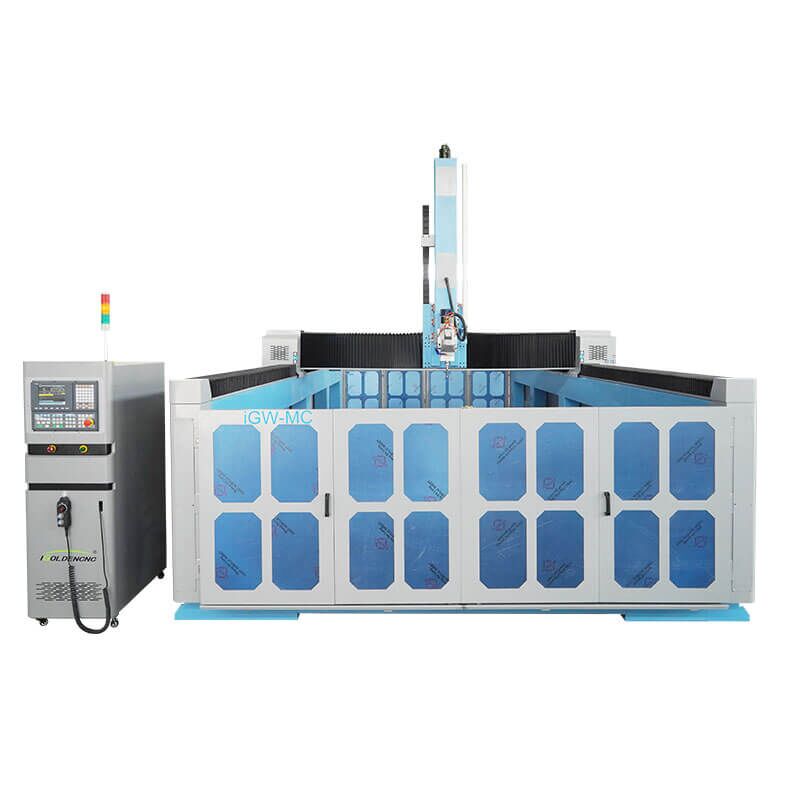

Eps CNC Router 4 Axis Machining Centre
Mold industry: casting mold, automobile, ship, yacht, aviation industry, rail transportation etc.
Musical instruments: large 3D curved surface and shape processing.
Applicable materials: wood, EPS, other non-metal carbon mixed compound, etc.
Contact Us Today to Get Price!
