The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.

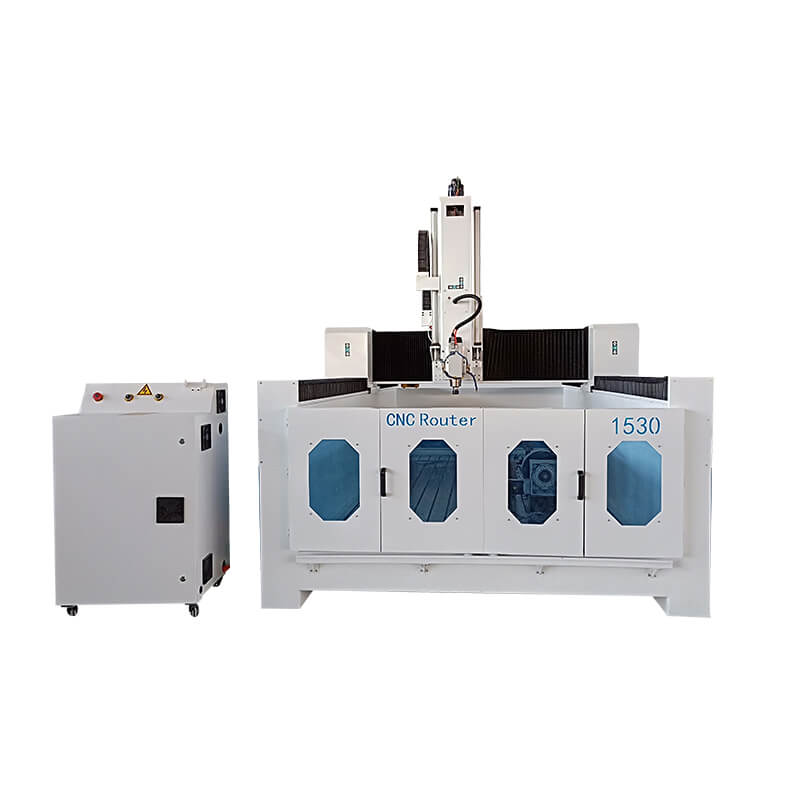

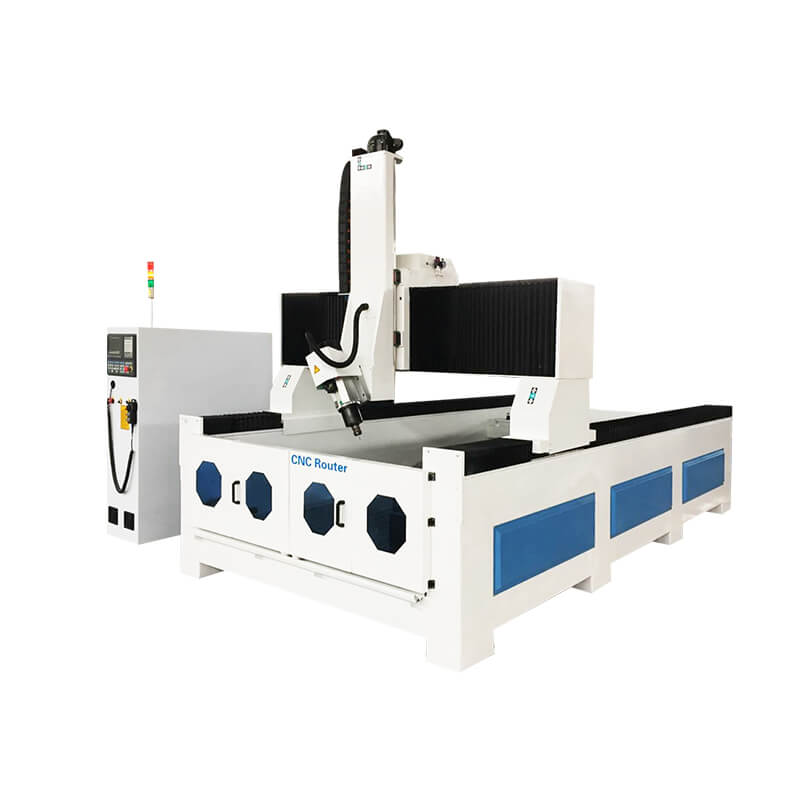

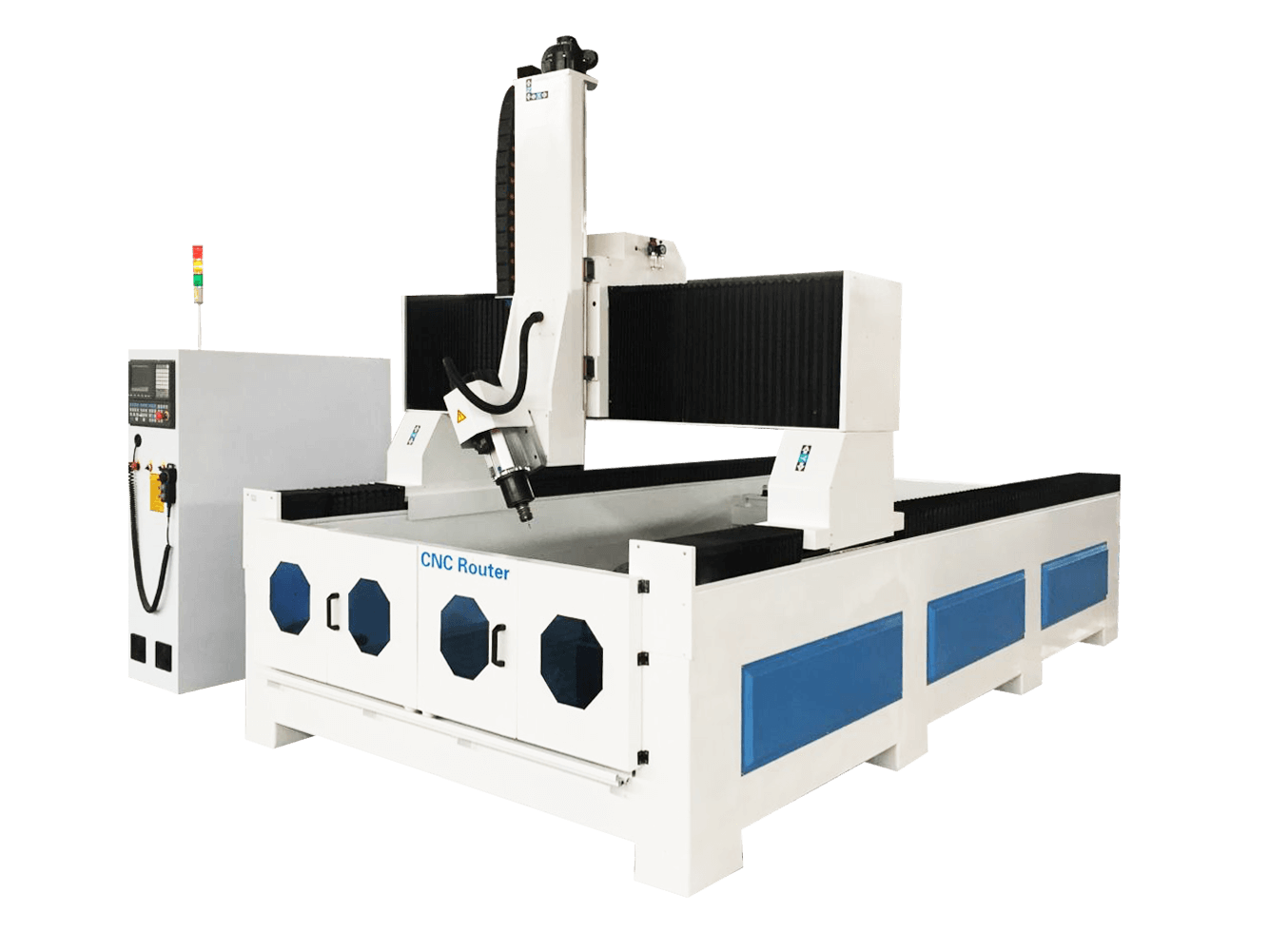

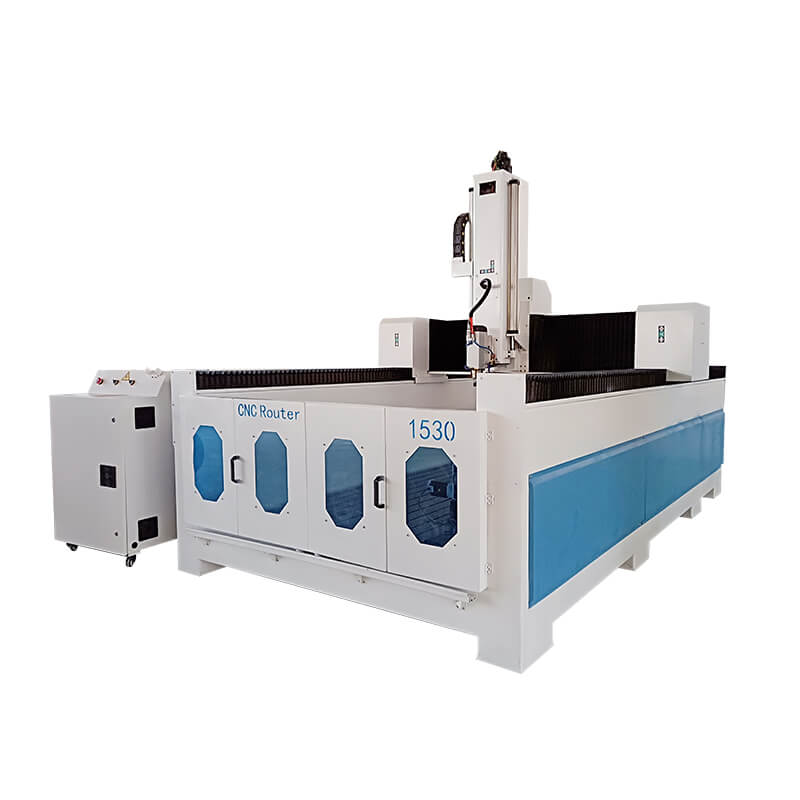

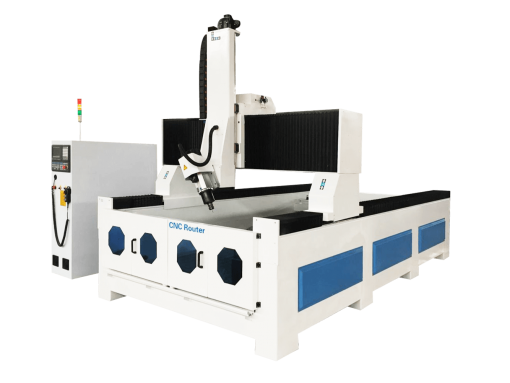

3d Foam for CNC Milling Machine iGW-MC-1530
$18,000.00
$18,000.00 – $20,000.00
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Foam Milling CNC Router
4 Axis CNC Router Machine is mainly for 3D wood carving, can do more complex woodworking such as side engraving on wood than 3 axis CNC. ATC HSD Spindle automatic change tools from tools changer, during all process no manual assistant needed, saves a lot of time and fewer operation needed;
The 4 axis CNC Router has the advantages of complete functions, wide processing range, high processing accuracy. More and more users choose the 4 axis CNC Router machines for 3D Wood carving. If you have similar three-dimensional workpieces, this CNC Wood Router will be your ideal choice.
4 Axis CNC Router Machine Video
4 Axis Router Wood Carving Machine Parameter
Technical Data
| Model | iGW-MC-1530 |
| Working area | 1500*3000*800mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | Aluminum profile |
| Spindle power | HQD 9KW |
| Spindle speed | 18000rpm/min |
| Travelling speed | 45m/min |
| Working speed | 30m/min |
| Working Delicacy | 0.02mm |
| Repositioning Accuracy | 0.03mm |
| Driver motor | Servo motor |
| Control system | DSP/Nc studio /Syntec |
| Voltage | 3 Phase/380V/50HZ |
We offer customized services according to your requests such as the working area and specifications.
Applications Of 4 Axis CNC Router Machine
Hot applications include:
Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.
>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;
>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
4 Axis CNC Router Features
1. This 4 Axis CNC Router is equipped with a carousel auto tool changer, which automatically changes tools, saves time and manpower;
2. Air cooling HSD Spindle has a strong cutting ability, is very good at long time woodworking;
3. YASKAWA servo motor is quality and very famous, it ensures working with high speed and accuracy;
4. Vacuum & T-slot combined work table absorbs big materials by vacuum power and fixes small materials by clamps;
Contact Us Today to Get Price!
