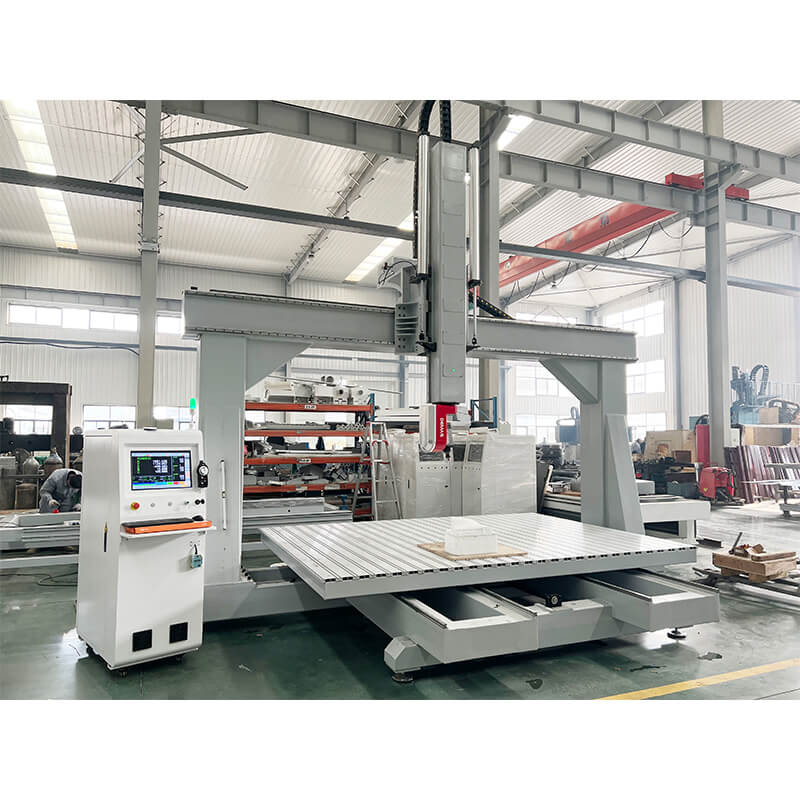

3D Engraving 5 Axis CNC Machining Center

$72,000.00

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries.

$72,000.00

* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

3D Engraving 5 Axis CNC Machining Center

$72,000.00

Category:

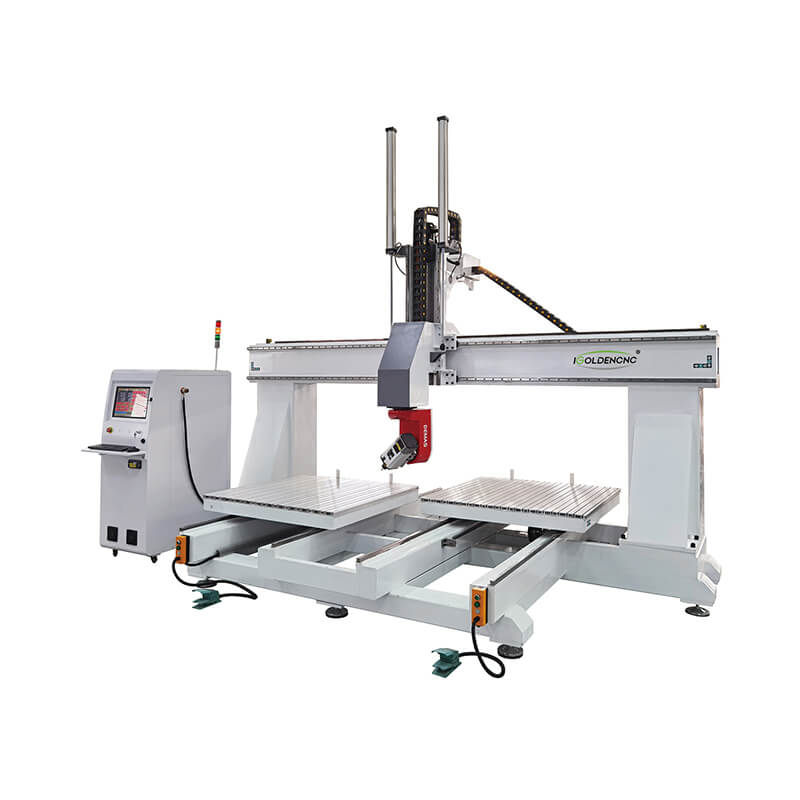

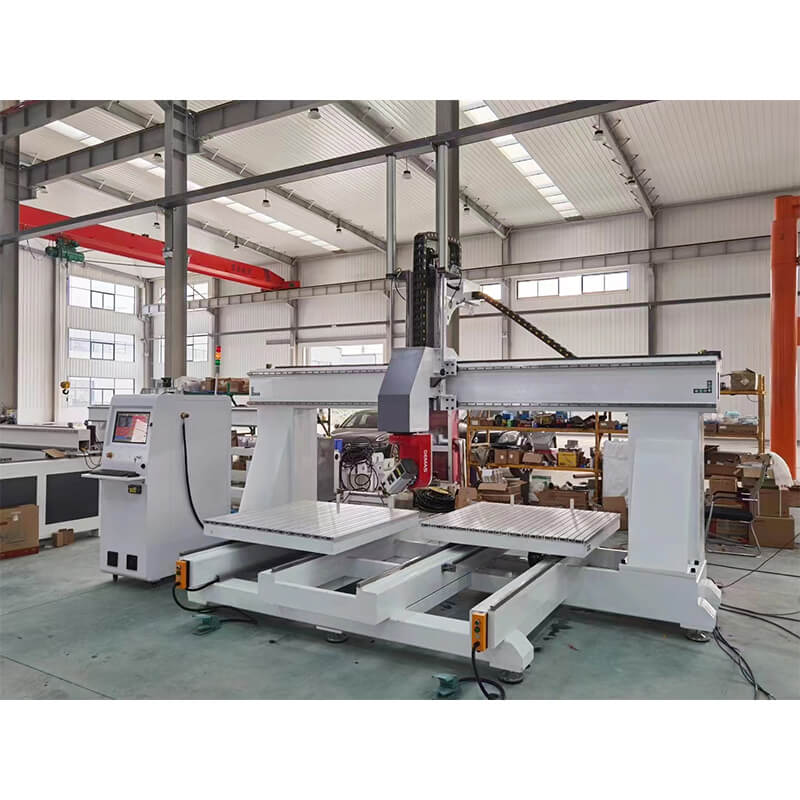

5 Axis CNC Machining Center with Two Tables

The best 5 axis CNC router with double worktable moving and 5-axis spindle, it’s easy to accomplish full set processing of complex parts from milling, slotting, drilling, sawing, mortise, mortise, etc
Advanced 5 axis cnc router machine, also known as 5 axis cnc machining center, 5 axis cnc milling machine, is good at space curved surface processing, special-shaped processing, hollow processing, punching, oblique drilling, chamfering, etc. It is widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing, etc.

Worktable Moving 5 Axis CNC Router Video

Worktable Moving 5 Axis CNC Router Parameter

Technical Data

Model iGW-5AM-3012
Type Table moving 5 axis cnc router
Working area 3000*1200*800mm
Table structure Double surface cast iron table moving
Transmission Helical rack on X axis, Taiwan TBI ball screw for Y Z axis
Guide Rail Three axis #30 Taiwan guide rail
Tool Change 10 tool changes (optional double magazine)
Spindle Spanish akemd five axle head and 14.4-17KW spindle

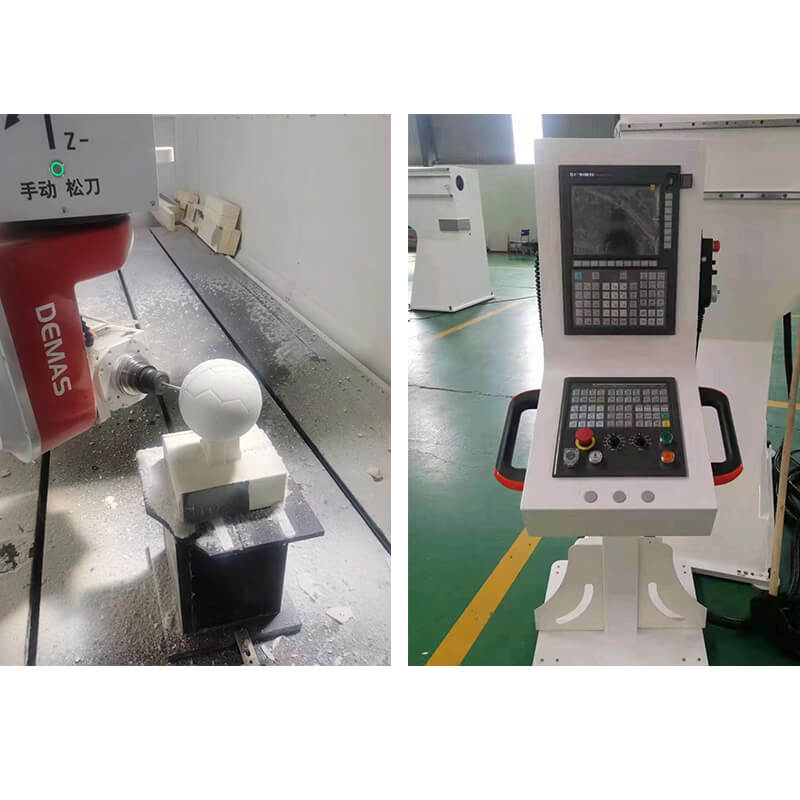

Control System Taiwan SYNTEC control system
Servo Motor Japan YASKAWA

We offer customized services according to your requests such as the working area and specifications.

Applications Of 5 Axis CNC Router Machine

INDUSTRIES

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.

In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.

MATERIAL

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Soft metal: aluminum, brass, copper, mild steel

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite

Features Of Table Moving 5 Axis CNC Machine:

1. This machine is with double table moving in work so that can improve the working speed

2. It is very good for small parts 5D products making like craft, wood mould, aluminum mould, foam mould etc

3. Two tables working together same project and working precision could be +-0.05mm. Z axis is adopted TBI ball screw with diameter 35mm very strong

4. Syntec control system Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.

5. Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface..

6. Adopt TAIWAN Syntec 8axis numerical control system, high machining accuracy and high speed.

7. The Japan THK rails with 30 size. and the Germany original rotating arm ensure the accuracy and strength of the mechanical

8. Advanced Syntec system with intelligent program that you no need prepare separate post processor just make a suitable 5 axis design in softare then input Syntec system then will be ok.

9. Economic 5 axis rotate spindle motor 10kw which is good for aluminum,wood,foam. pvc,plastice mould making

10. Heavy structure frame with quality steel tube after hot processing which is better stabilization and good rigidity
