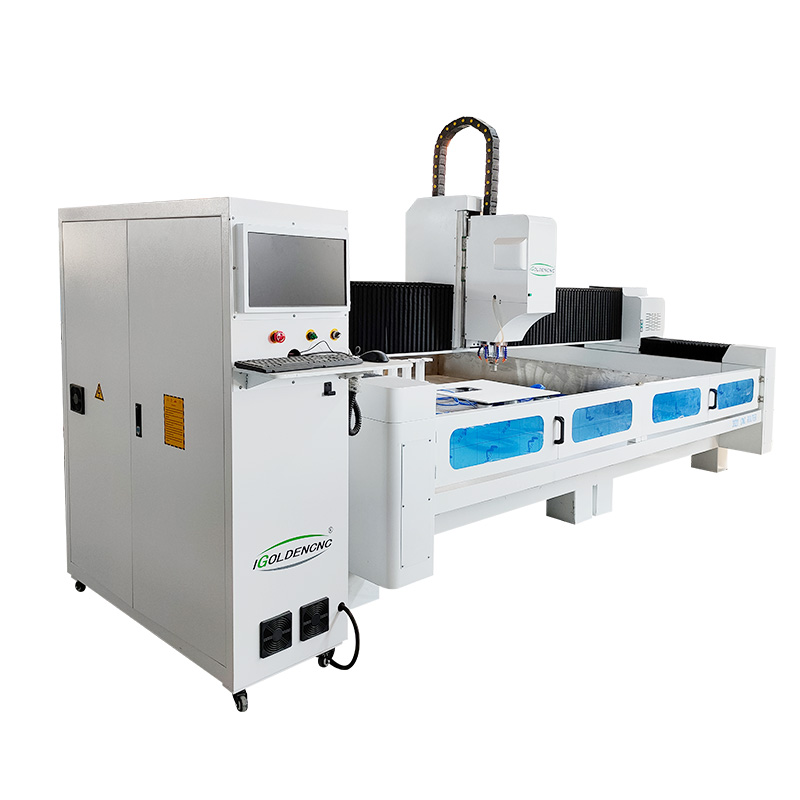

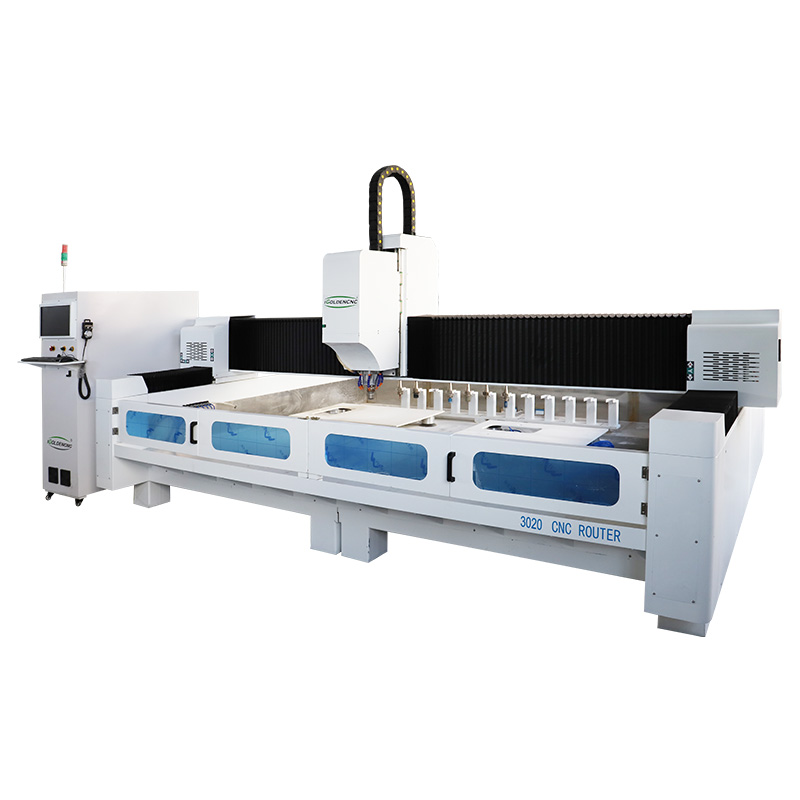

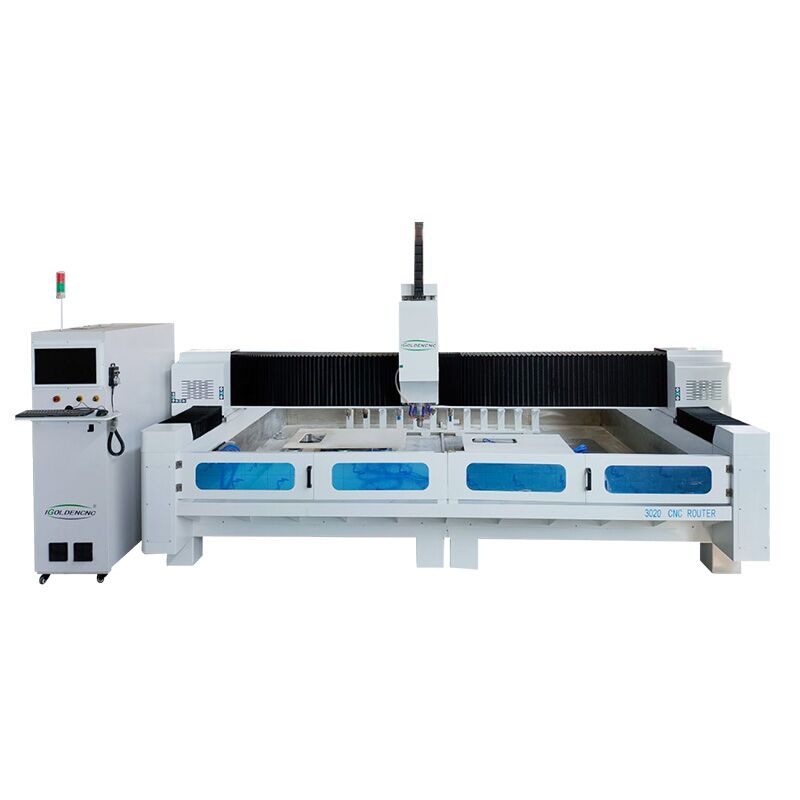

3020 ATC Quartz Stone CNC Machining Center

Name: 3020 ATC Quartz Stone CNC Machining Center
SKU: 287
Price: 20000.00 USD
Availability: InStock

$20,000.00

CNC stone cutting & polishing machine 3020 is used for cabinets artificial stone, quartz stone, granite, marble carving, cutting, polishing, drilling, engraving. Now the affordable CNC stone machine for sale at cost price.

$20,000.00 – $22,000.00

* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

Send Inquiry Chat Now

Categories: Stone Carving Machine, Stone CNC Machine

Description
Reviews (0)

Quartz stone CNC machining center

CNC stone machining center-quartz stone cabinet countertops processing, stone side modeling, arc retaining water grinding, basin pots, stone relief, hollow, line carving. Granite, marble, bluestone, tombstone, headstone and other stone materials processing. One-key intelligent completion of conventional blanking, 45° bevel cutting, multi-angle arbitrary cutting, curve cutting, internal angle and basin hole cutting and other processes.Now, the affordable CNC stone machining machine is sold at the best price.

Send Inquiry

CNC Stone Machining Center Video

Quartz Stone CNC Processing Center Applications

Technical Data

X, Y Axis Working Area	2000*3000mm
Z Axis Working Height	500mm
Positioning Accuracy	0.05mm
Re-positioning Accuracy	0.02mm
Body Structure	Welding Body
X, Y Axis Structure	Gear Rack
Z Axis Structure	Screw
Max. Running Speed	20000mm/min
Max. Working Speed	10000mm/min
Spindle	5.5kwWater-cooling
Spindle RPM	24000
Working Voltage	AC 380V±10% /50-60Hz
Machine Weight	3300kg

If you need more detailed information, please inform us as soon as possible.

CNC Stone Machining Center Description

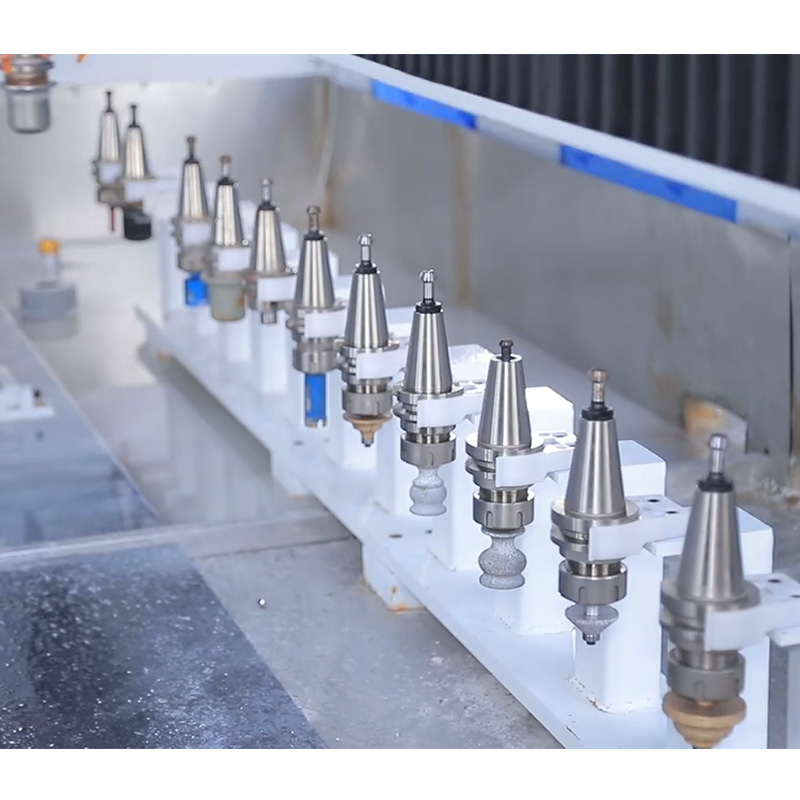

12 Linear Tools Magazine

CNC Stone Machining Center With Linear ATC Positions for stone cutting, profiling, Edging, milling,

5.5kw Water-cooled Spindle

Dustproof and waterproof sealed, the body is smooth and not easy to rust, and the rotation accuracy is high. The bearing has long life, high speed and low noise, stable operation, no chipping in machining, high spindle accuracy and maintenance-free.

Upgraded Intelligent Control System

NC65 Series Controller Faster Responsible & Strong Function Inset CAM/CAD design software

Send Inquiry

Stone CNC Machine Center Application:

The advanced CNC stone machining center designed by iGOLDENCNC adopts a high-strength mechanical structure, which is very suitable for manufacturers of kitchen cabinets and bathroom supplies processing industries. It adopts imported linear guide rails to ensure accuracy and provides a set of competitive configurations.

1.Stoneworks: 3D/2D stone carving, Embossment, Line engraving Cutting, Edge inversing, Drilling on Natural stones, Granites, Artifical stones, Tombstones, Milestones, Ceramic, etc.

2.Die industry: Copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc

3. Heavy Cut Machine for Pyramid Type Stone

4. It is widely used in the gemstones production.

Contact Us Today to Get Price!
